WF 2144 – USB Programmable Resistor Module
The WF 2144 is a USB 2.0 compatible 4-channel, 16 bit, programmable resistor module.
Each channel is galvanically isolated, making it ideal for sensor simulation.
The 16 bit resolution is non-linear with finer steps at lower resistance values.
It could, for example, be used to emulate a PT100 sensor with a range of 40–180Ω/-150–+200°C with a resolution of 0.1°C.
An open API using the Modbus standard with Python and LabVIEW drivers makes it compatible with most computer architectures and operating systems.
$ 1,860.00
Quote request for WF 2144 – USB Programmable Resistor Module
Downloads, Information & Videos
Downloads
Data sheet
AB0005-091 WF 2144 Data Sheet.pdf
User Manual
AC0120-008 WF 2144 User Manual.pdf
LabVIEW Driver
AC0111-003 WF 2144 LabVIEW Driver.zip
Python Driver
AC0207-002 WF 2144 Python Driver.zip
Multiple WF 2144 USB Programmable Resistor Modules
AB0005-140 AN21 Multiple WF 2144 USB Programmable Resistor Modules.pdf
Additional Downloads
Simulation of a temp sensor
AB0005-006 AN1 Simulation of a temp sensor.pdf
Enhanced Mode
AB0005-017 WP1 WF 3144 Enhanced Mode.pdf
PT100 Resistance Thermometer Simulator
AB0005-085 AN9 PT100 Simulator.pdf | Example files referenced in the document can be found HERE
NTC Thermistor Simulator
AB0005-087 AN10 Thermistor Simulator.pdf | Example files referenced in the document can be found HERE
Specifications
– Channels; 4
– Max Voltage; 150 V
– Max Power; 100 mW/channel
– Range; 16 Ω–160 kΩ
– Update Rate; 200 Hz
– Max Error; R < 1 kΩ: 0,1 %
– Max Error; R < 10 kΩ: 1 %
– Max Error; R < 160 kΩ: 10 %
– Enhanced mode: Max Error; 32 Ω < R < 160 kΩ: 0.25 %
– Max Voltage; 150 V
– Max Power; 100 mW/channel
– Range; 16 Ω–160 kΩ
– Update Rate; 200 Hz
– Max Error; R < 1 kΩ: 0,1 %
– Max Error; R < 10 kΩ: 1 %
– Max Error; R < 160 kΩ: 10 %
– Enhanced mode: Max Error; 32 Ω < R < 160 kΩ: 0.25 %
Features
– Four independent, galvanically isolated channels
– Entirely solid-state simulation
– High resolution with non-linear scaling
– Wide resistance range
– On-board calibration memory
– Open Modbus API
– LabVIEW and Python driver included
– Combines permutations of real resistors to achieve desired value
– Entirely solid-state simulation
– High resolution with non-linear scaling
– Wide resistance range
– On-board calibration memory
– Open Modbus API
– LabVIEW and Python driver included
– Combines permutations of real resistors to achieve desired value
Application areas
– Resistive sensor simulation;
– Pressure sensors, Thermistors, RTDs etc.
– ATE (Automatic Test Equipment)
– HiL testing (Hardware in the Loop)
– Laboratory testing of electronic control units
– Automated calibration and alignment
– Automate manual controls
– Pressure sensors, Thermistors, RTDs etc.
– ATE (Automatic Test Equipment)
– HiL testing (Hardware in the Loop)
– Laboratory testing of electronic control units
– Automated calibration and alignment
– Automate manual controls
Shipping information
– Product Net Weight: 0.23 kg
– Country of Origin: Sweden (SE)
– Harmonized System (HS) Code: 85371091
Support & FAQ
Visit our knowledge base on our Support Portal if you don’t find any answers to your questions here.
General information
What kind of connector are used for the module?

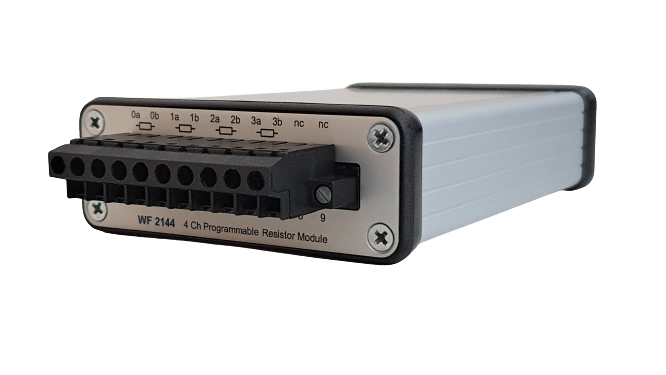

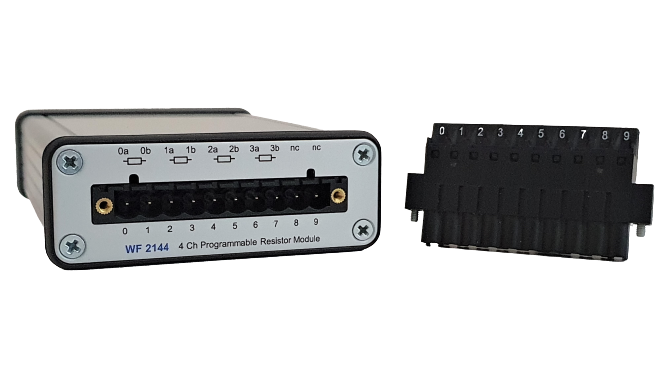

The WF 2144 and uses a 10-Pos Plug. You should connect a terminal block for 10-Pos Plug to the module. This terminal block is included together with the module when shipped from WireFlow. If you need some extra plugs you should acquire article 1970045 from Phoenix Contact.
The WF 2144 and uses a 10-Pos Plug. You should connect a terminal block for 10-Pos Plug to the module. This terminal block is included together with the module when shipped from WireFlow. If you need some extra plugs you should acquire article 1970045 from Phoenix Contact.
Can I use multiple WF 2144 on the same PC?
Yes, multiple WF 2144 devices can be used on the same PC. For more details, please refer to AB0005-140 AN21 Multiple WF 2144 USB Programmable Resistor Modules
Yes, multiple WF 2144 devices can be used on the same PC. For more details, please refer to AB0005-140 AN21 Multiple WF 2144 USB Programmable Resistor Modules
How is the WF 2144 Programmable Resistor Module designed?
The module uses an array of real resistors switched with solid state relays to the desired resistance.
The module uses an array of real resistors switched with solid state relays to the desired resistance.
